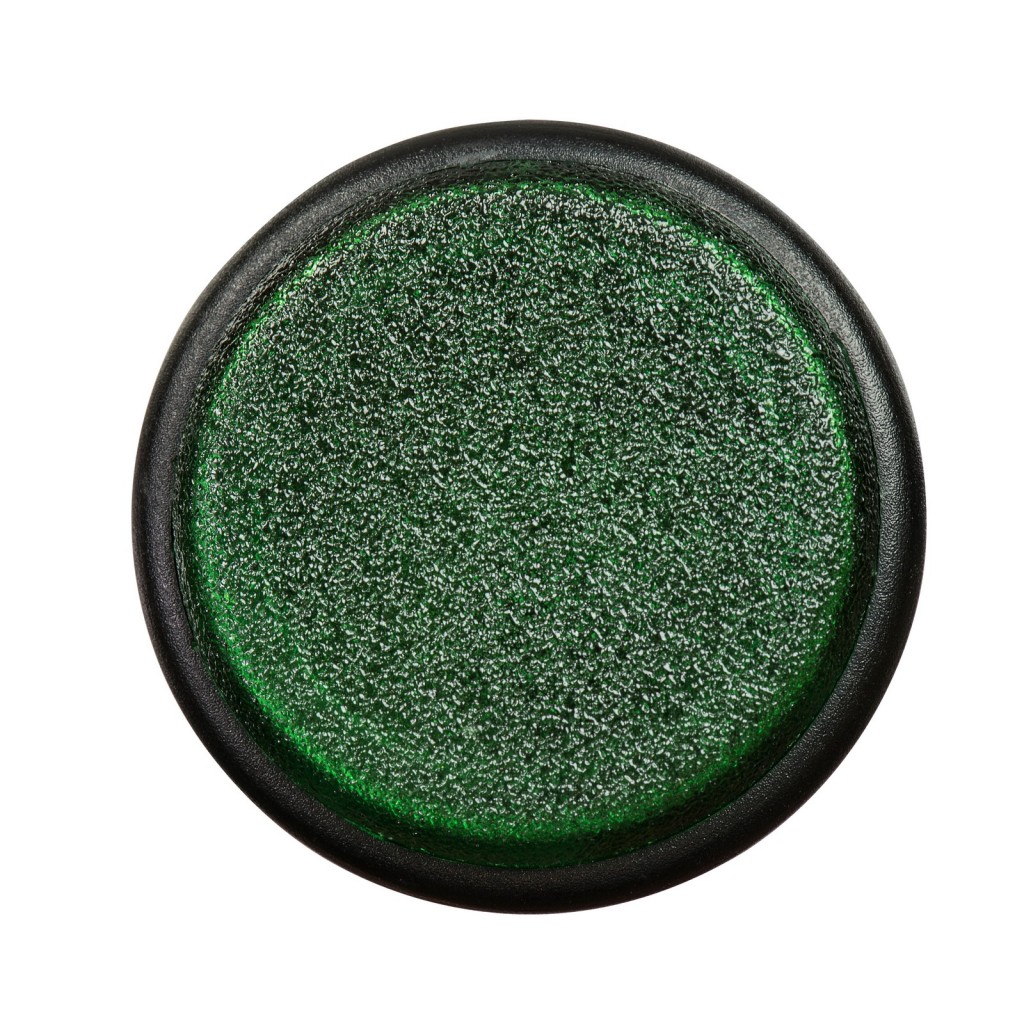

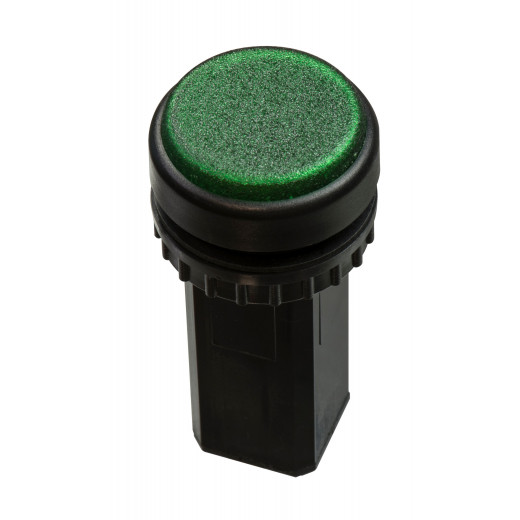

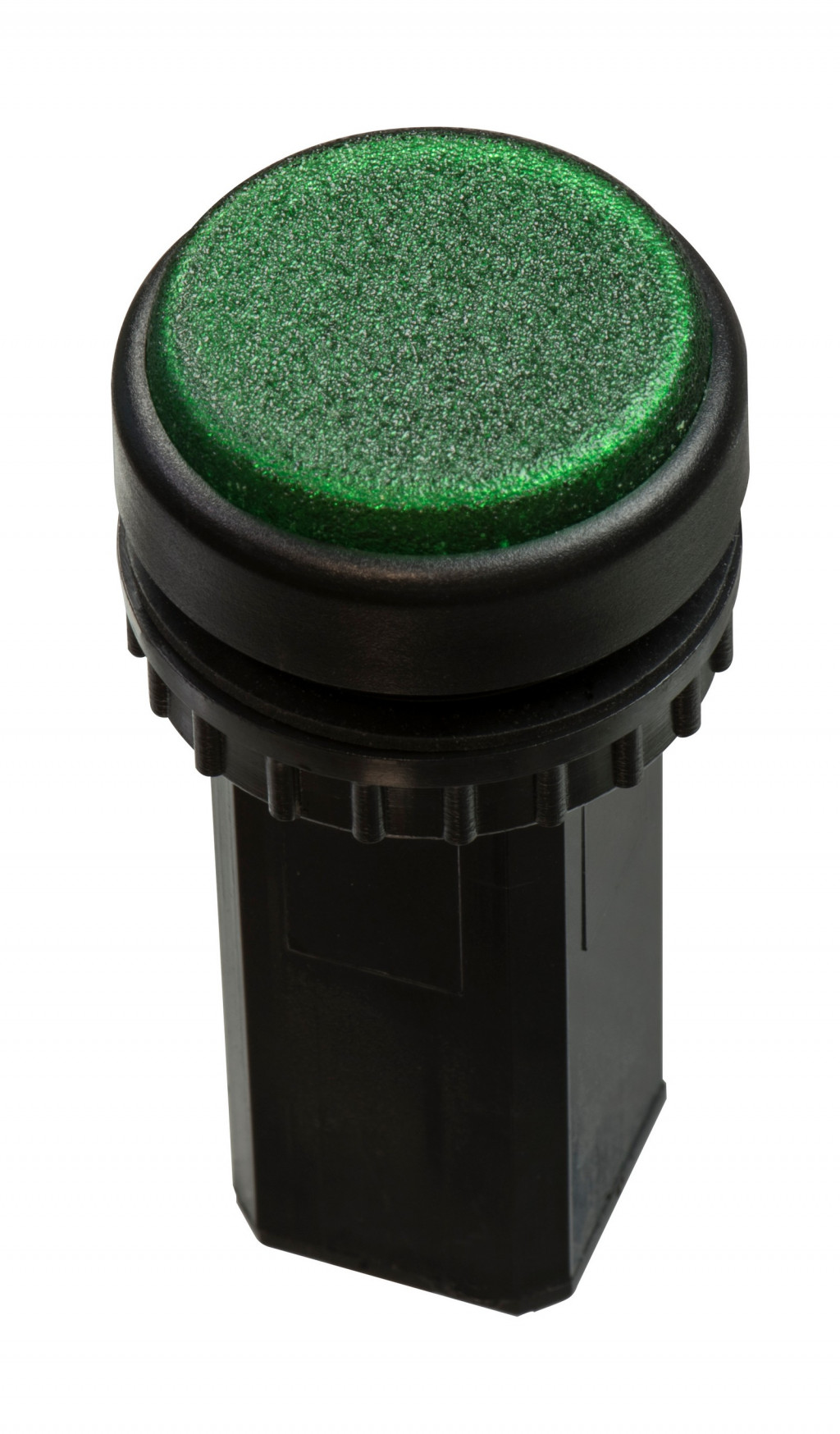

VIS-98 6 pcs. LED
VIS-98Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Operating voltage | 12-230V AC, DC, AC/DC | Nominal current | max. 20mA | IP protection | IP65 | Panel thickness | max. 10 mm | Connecting conductor diameter | 2,5 mm² | Holes spacing | minimal 37 mm | LED colour | R, G, B, Y, W, O | Dimensions | ø36 mm, length 73 mm, length behind the panel 60 mm | Operating temperature | -25.. +55°C | Mounting hole | 30 mm |
Fucnction | Indicators are produced with glow, flash and two-state functions. |
Warning | LED 2 cannot be combined with Test function (T) |
