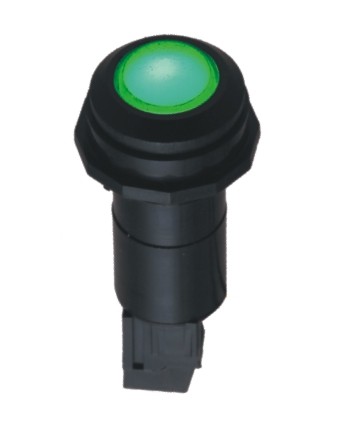

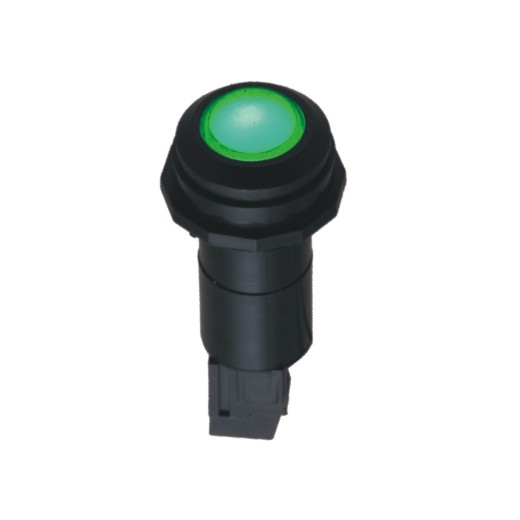

SZS-06.1 1ks LED

Product code: %% completeCode %%
Power Supply
Voltage type
We offer a custom-made configuration
We will help you with your purchase
Contact us: 777 029 105
SZS-06.1 1ks LED
Operating voltage12-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 5 mm
Connecting conductor diameter1,5 mm²
Holes spacingminimal 22 mm
LED colourR, G, B, Y, W, O
Dimensionsø17 mm, length 49 mm, length behind the panel 44 mm
Operating temperature-25.. +55°C
Mounting hole14 mm
WarningFlashing function only
