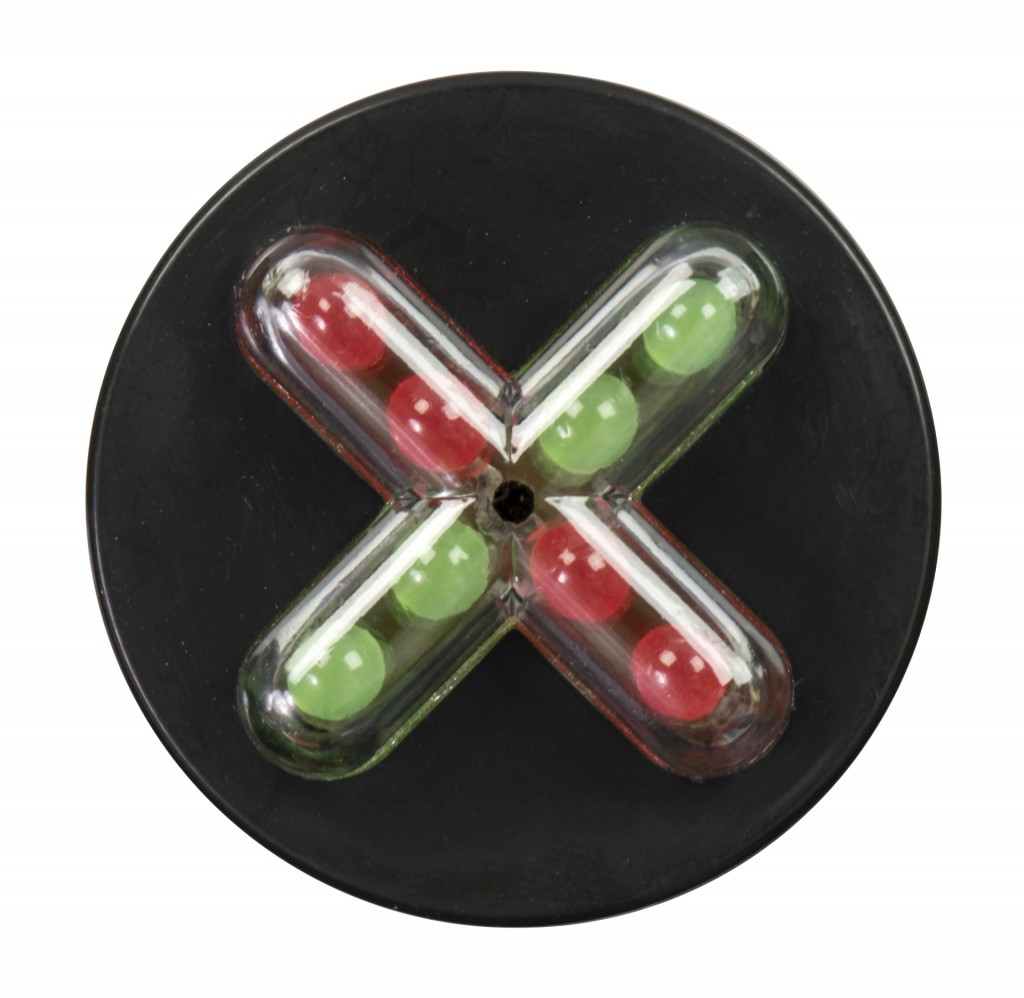

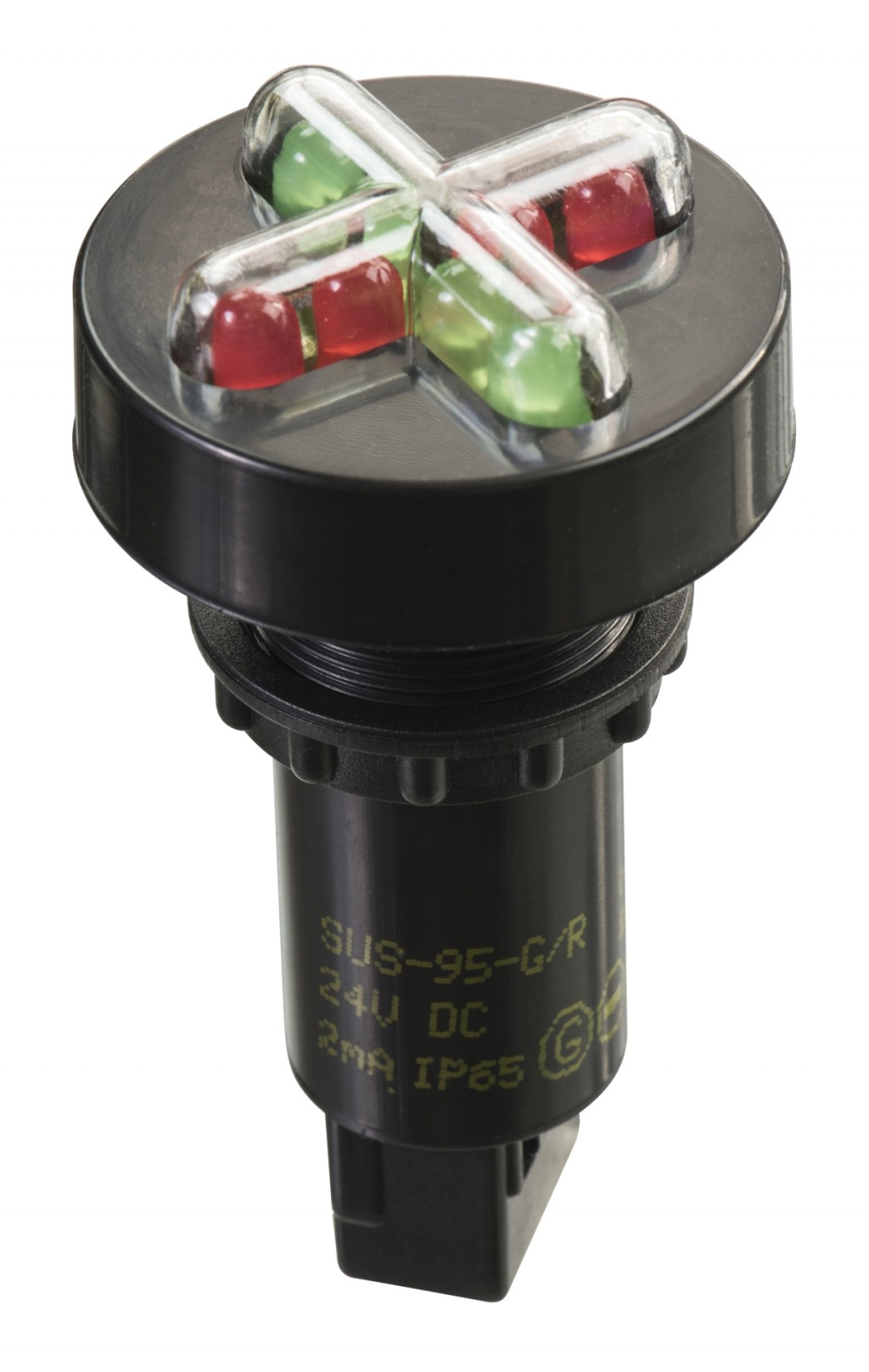

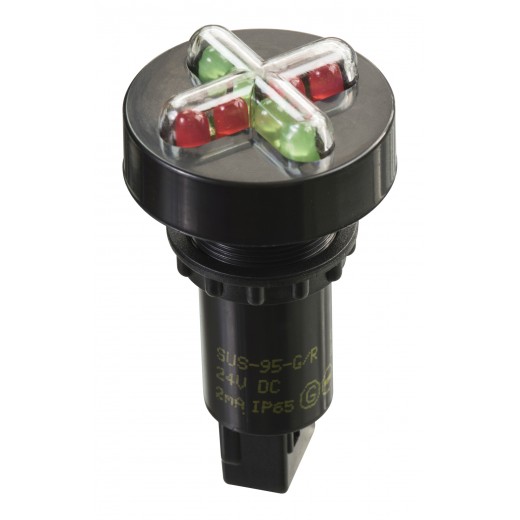

SUS-95
SUS-95Product code: %% completeCode %%
Colour
Function
Colour 2
Power Supply
Voltage type
Operating voltage | 12-230V AC, DC |
Nominal current | max. 20mA |
IP protection | IP65 |
Panel thickness | max. 12 mm |
Connecting conductor diameter | 2,5 mm² |
Holes spacing | minimal 40 mm |
LED colour | R, G, B, Y, W, O |
Dimensions | ø39 mm, length 75 mm, length behind the panel 57 mm |
Mounting hole | 22 mm |
Warning | Upper cover of the indicator may be supplied in various colour designs, standard colour is black. |
