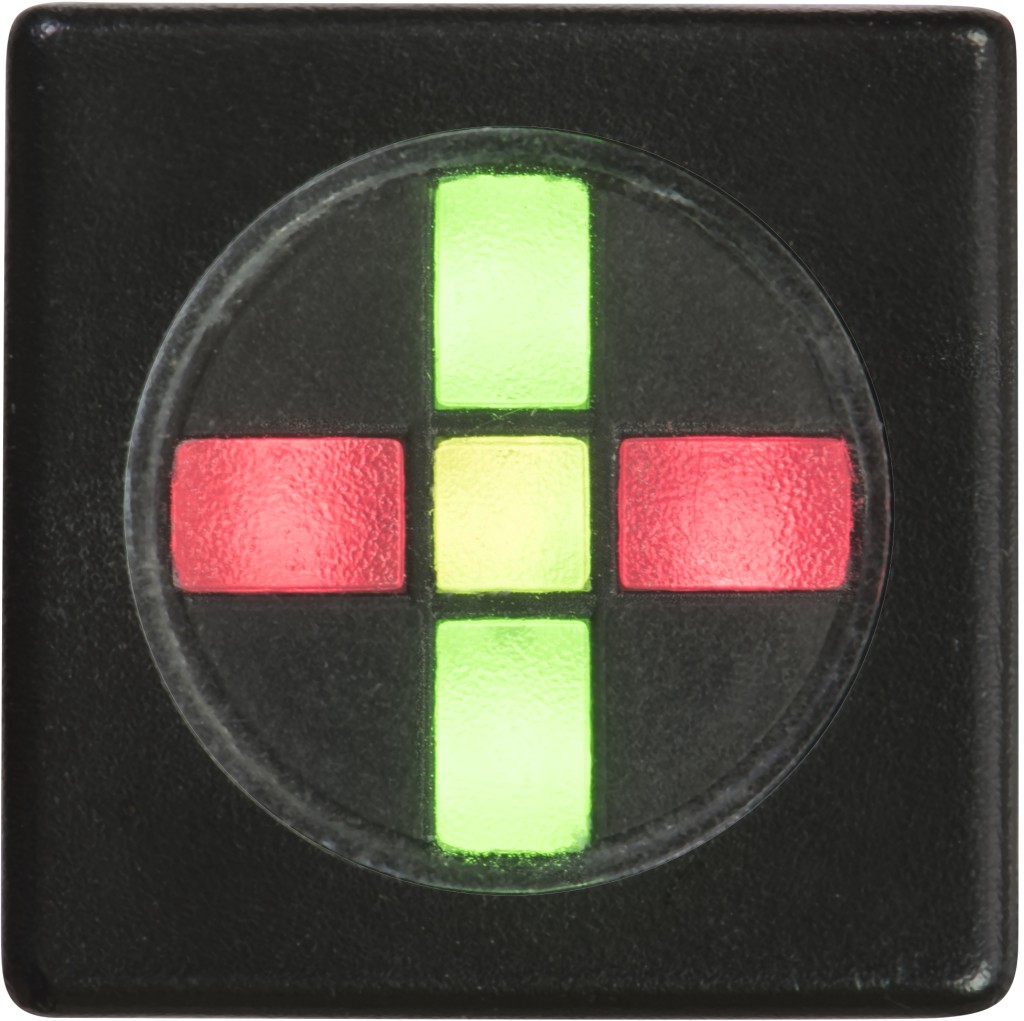

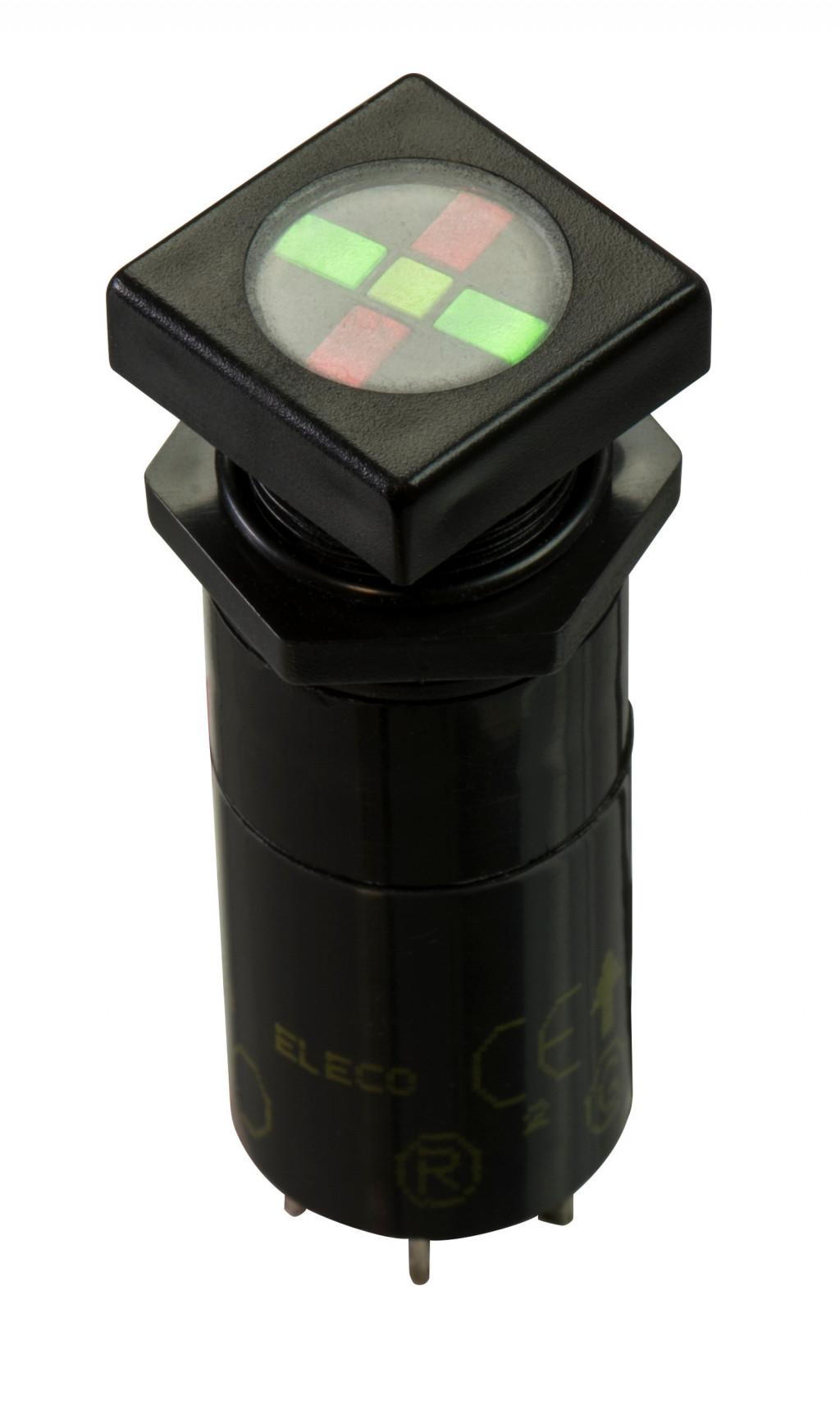

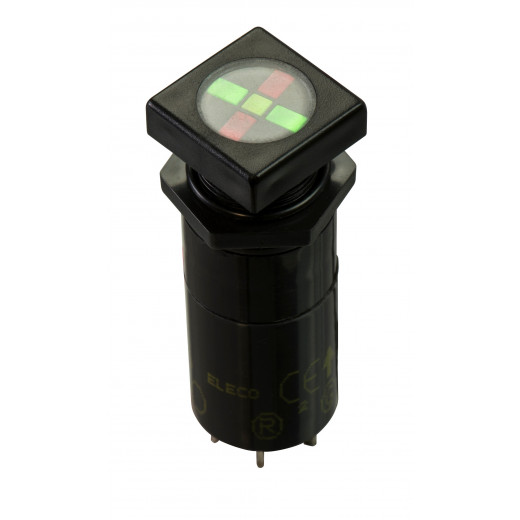

SUS-02-T-Q
SUS-02-T-QProduct code: %% completeCode %%
Colour
Colour 2
Colour 3
Power Supply
Voltage type
Operating voltage | 12-230V AC/DC |
Nominal current | max. 20mA |
IP protection | IP65 |
Panel thickness | max. 12 mm |
Holes spacing | minimal 25 mm |
LED colour | R, G, B, Y, W, O |
Dimensions | length 58 mm, length behind the panel 64 mm |
Mounting hole | 16 mm |
Connection method | Faston 2,8 x 0,8 x 7,0 mm |
Fucnction | For SUS-01.T and SUS-02.T, third colour may be connected in the middle of the indicator. |
