SOS-99 1 pc. LED

Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105

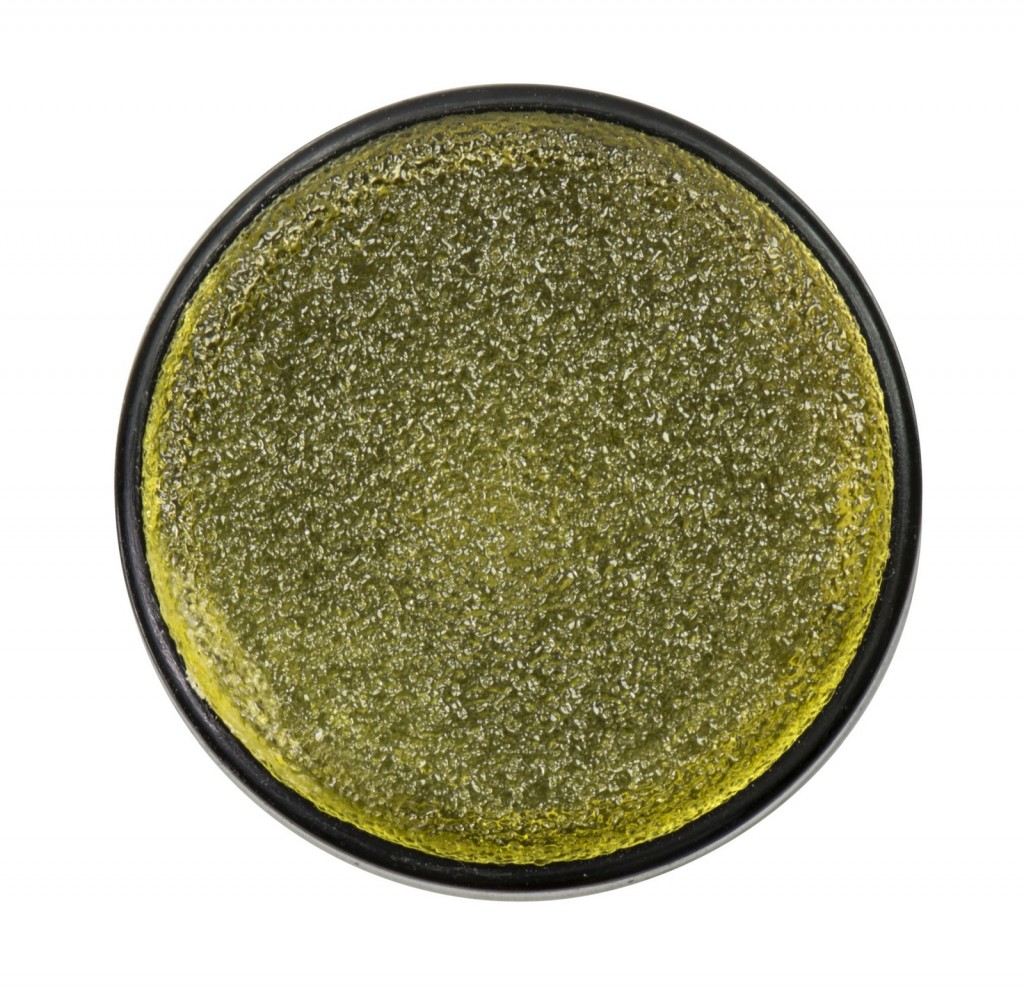

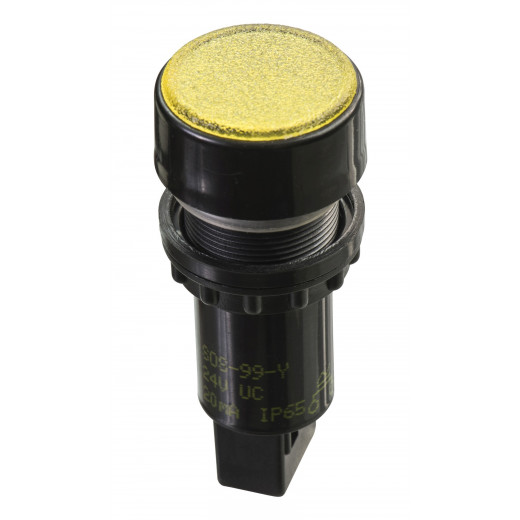

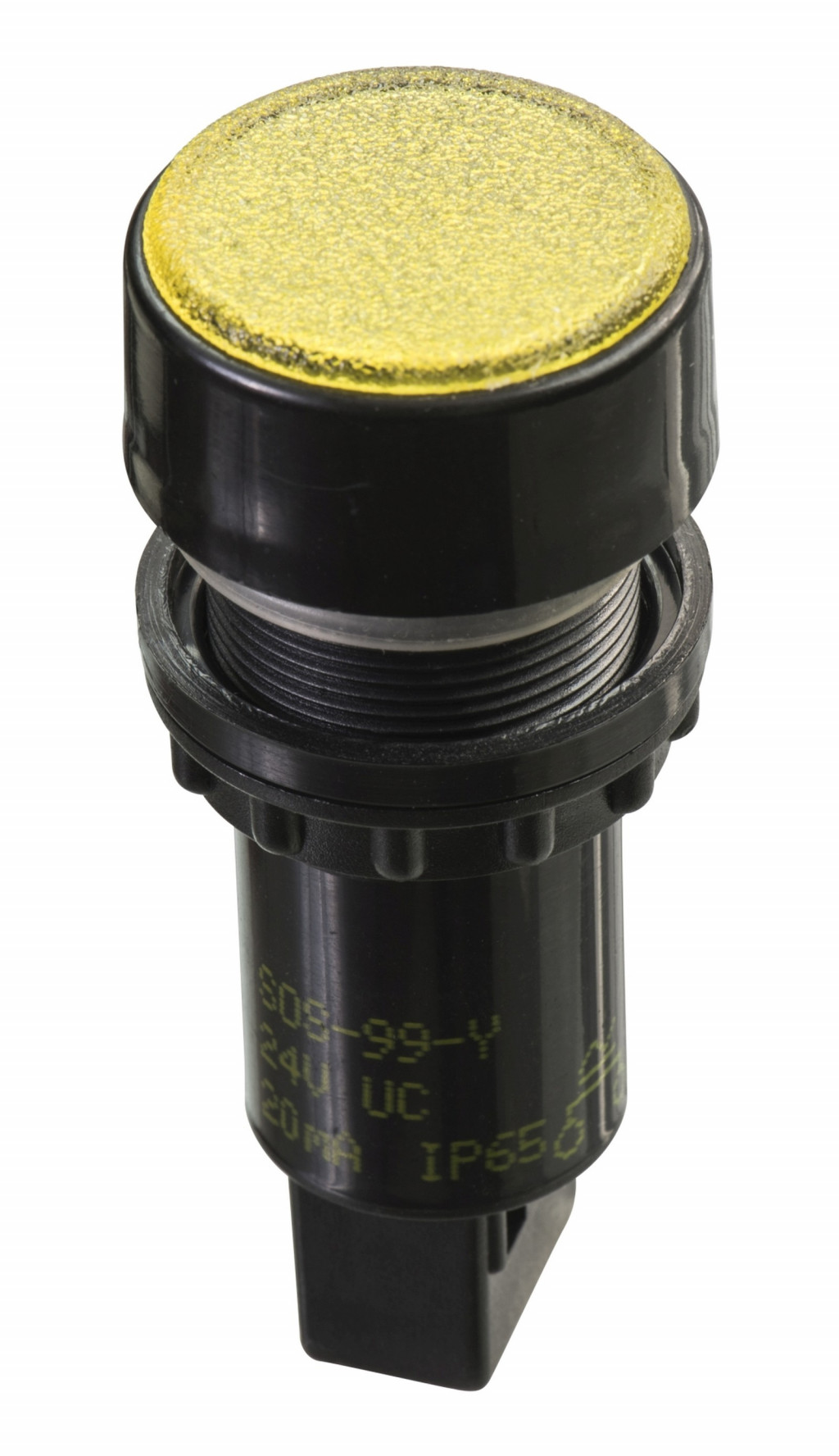

SOS-99 1 pc. LED
Operating voltage12-60V AC, DC, AC/DC 110-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 10 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 31 mm
LED colourR, G, B, Y, W, O
Dimensionsø30 mm, length 73 mm, length behind the panel 59 mm
Operating temperature-25.. +55°C
Mounting hole22 mm

FucnctionIndicators are produced with glow, flash and two-state functions.

WarningThe SOS indicator head is a version identical with the OTP, OTN push-button head and the ODP, OTP, ODN control, and therefore it is possible to install them together. LED 2 cannot be combined with Test function (T)
