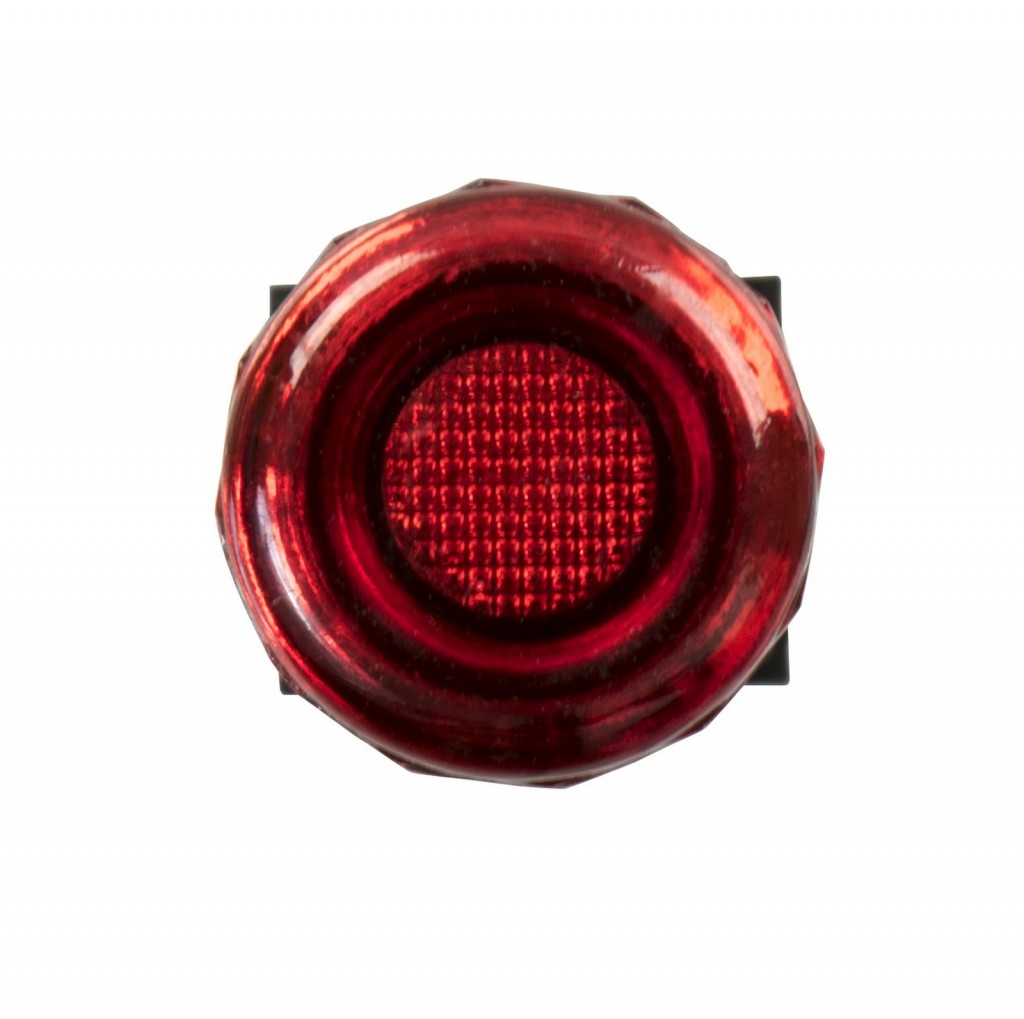

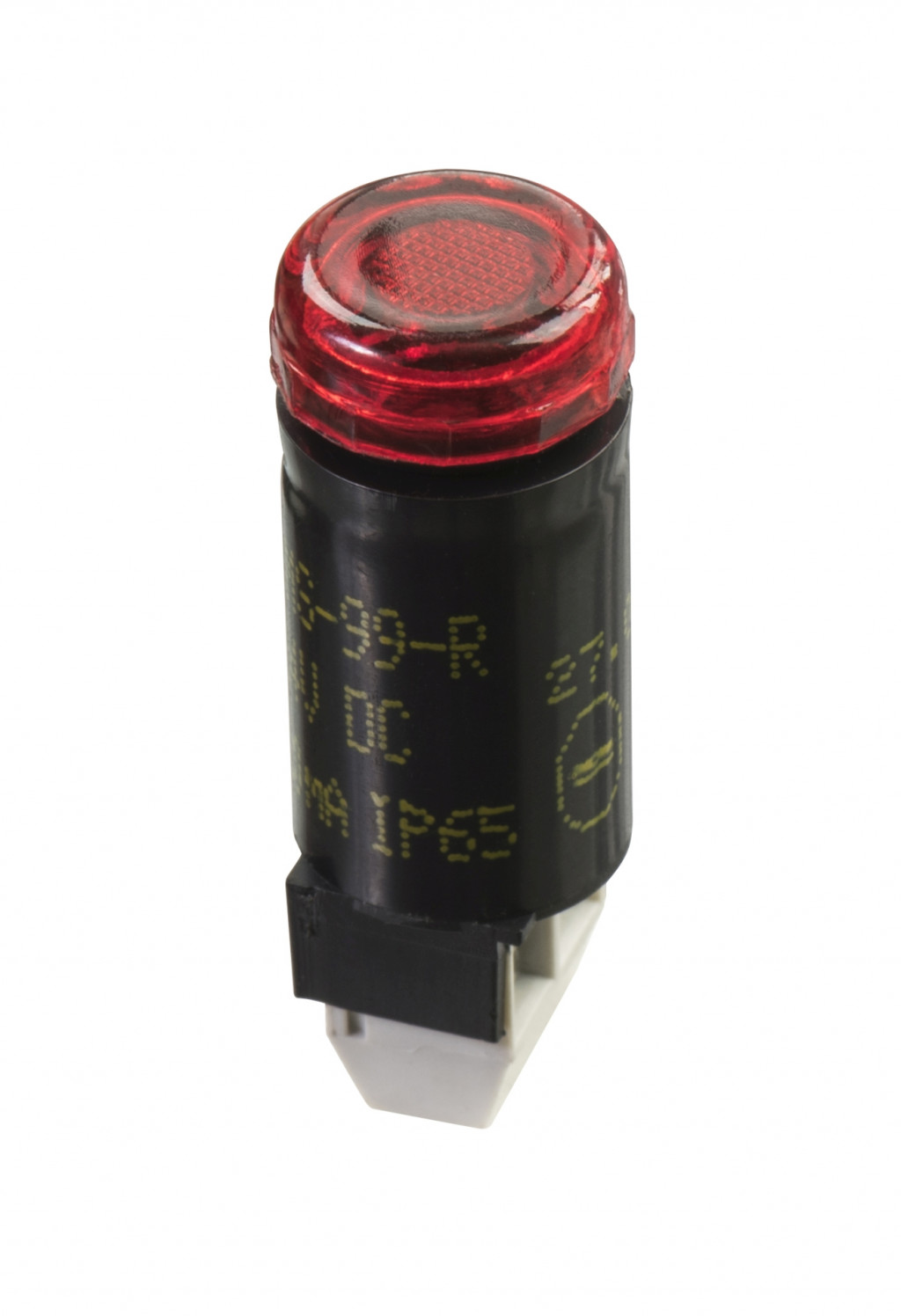

SMS-99 1 pc. LED

Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Your customization
Product code:  SMS-99 1 pc. LED-R-NE-NE-NE-12V-AC-NE %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
SMS-99 1 pc. LED
Operating voltage12-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 3 mm
Connecting conductor diameter1,5 mm²
Holes spacingminimal 15 mm
LED colourR, G, B, Y, W, O
Dimensionsø13 mm, length 36 mm, length behind the panel 30 mm
Operating temperature-25.. +55°C
Mounting hole8 mm

FucnctionIndicators are produced with glow, flash and two-state functions.

WarningLED 2 only up to 48V
