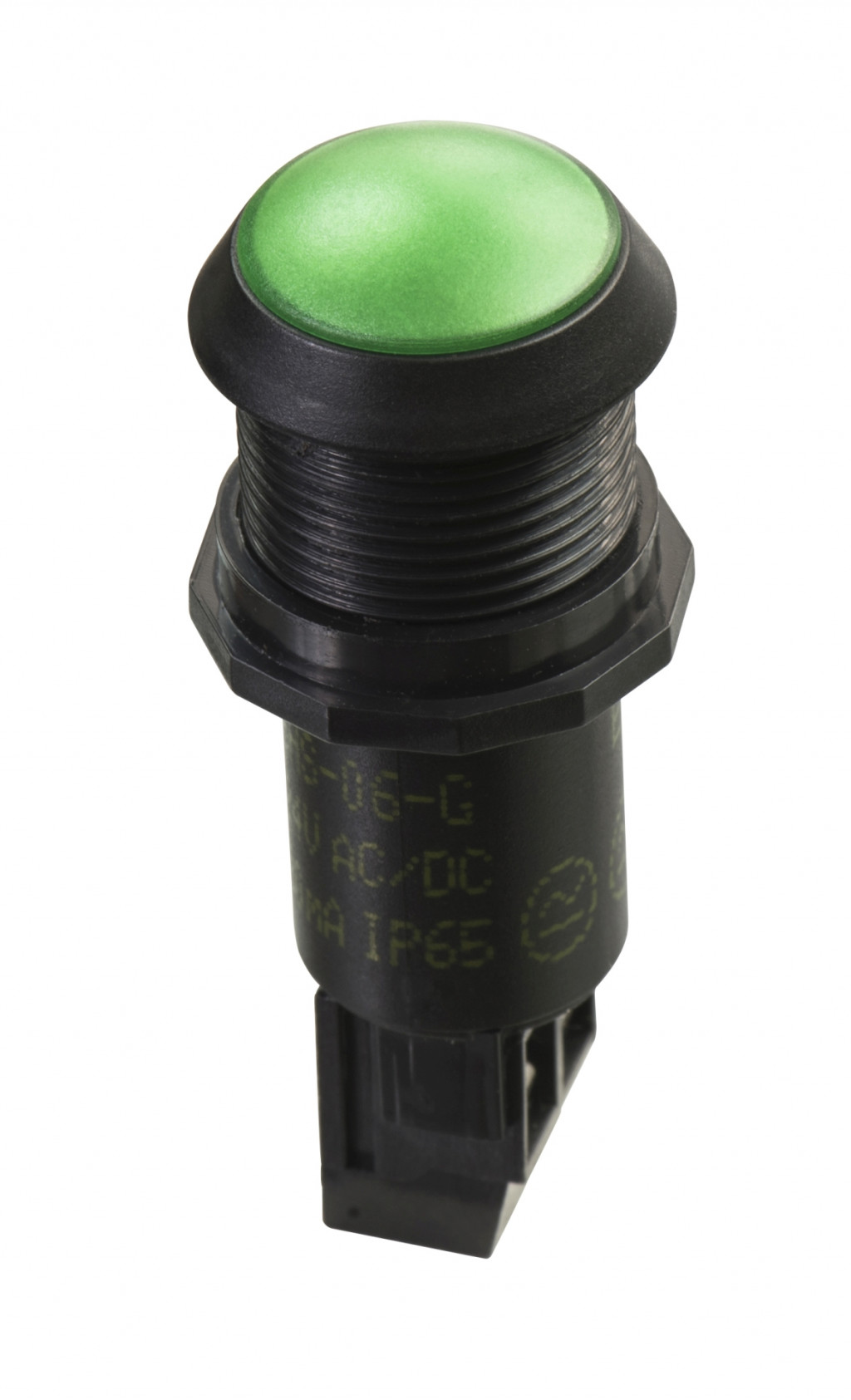

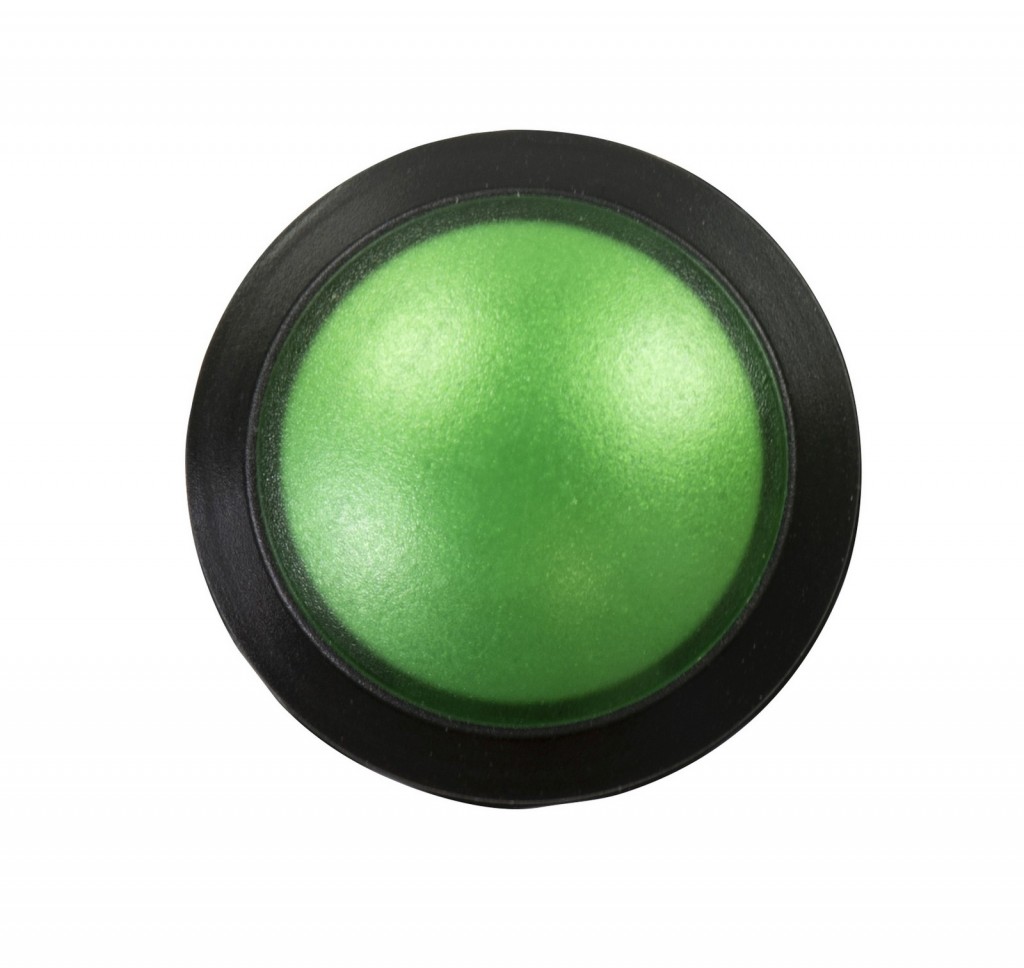

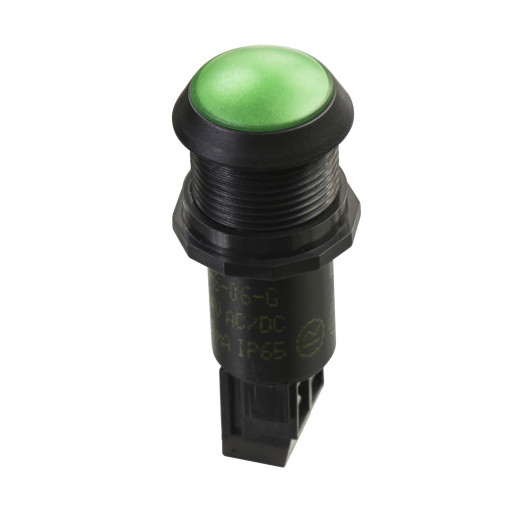

SHS-06 1 pc. LED
SHS-06Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Operating voltage | 12-230V AC, DC | Nominal current | max. 20mA | IP protection | IP65 | Panel thickness | max. 9 mm | Connecting conductor diameter | 1,5 mm² | Holes spacing | minimal 22 mm | LED colour | R, G, B, Y, W, O | Dimensions | ø22 mm, length 52 mm, length behind the panel 45 mm | Operating temperature | -25.. +55°C | Mounting hole | 16 mm |
Warning | LED 2 only up to 48V |
