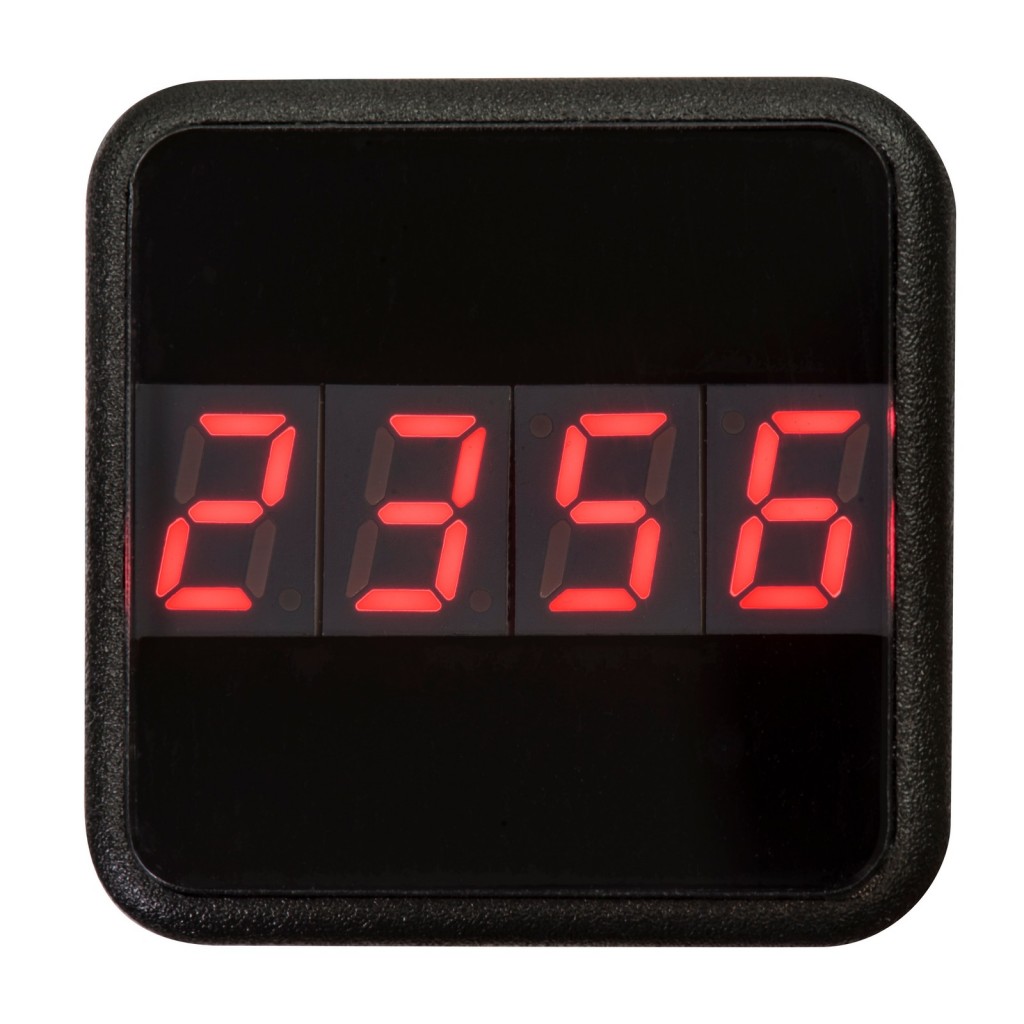

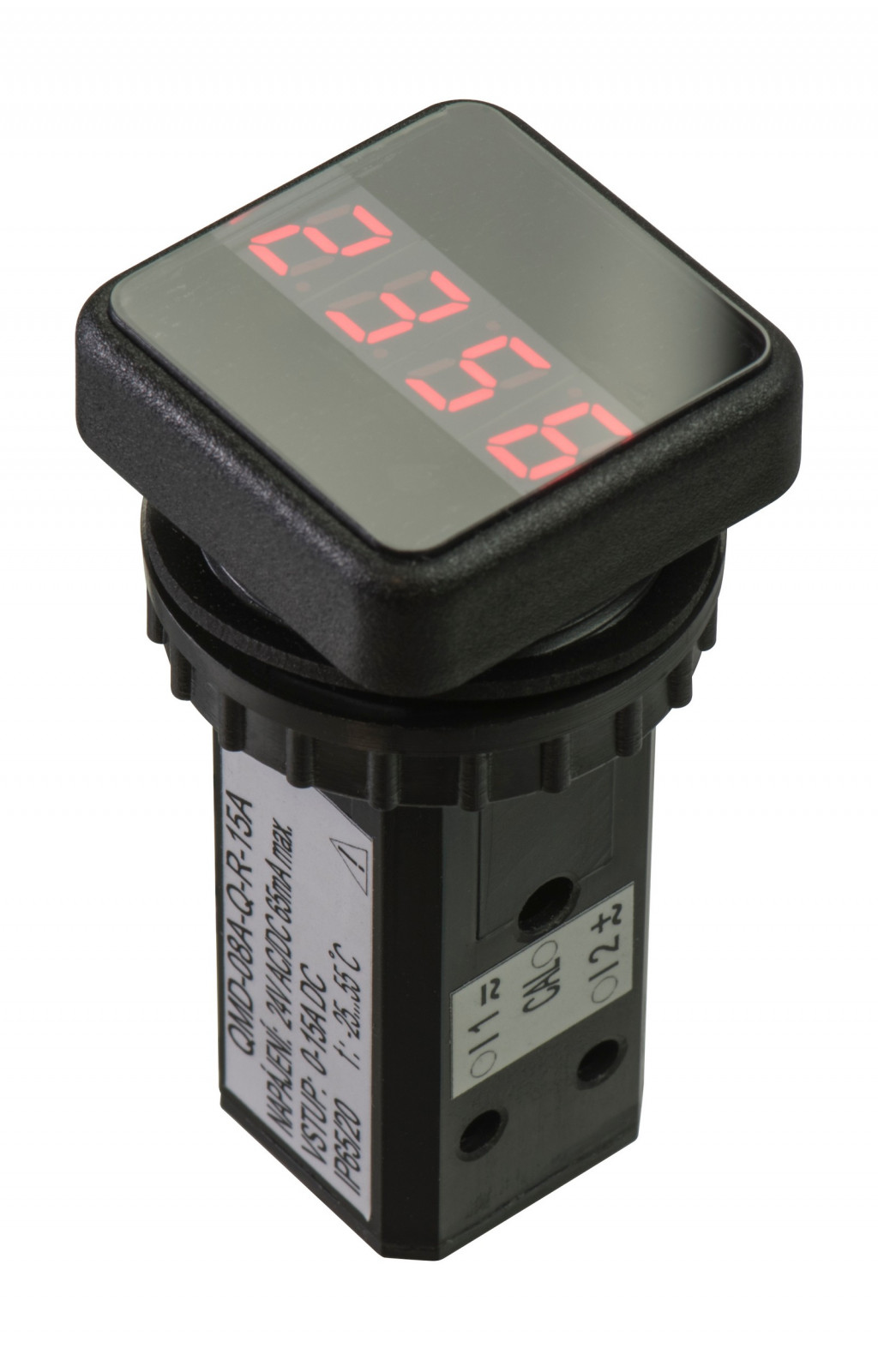

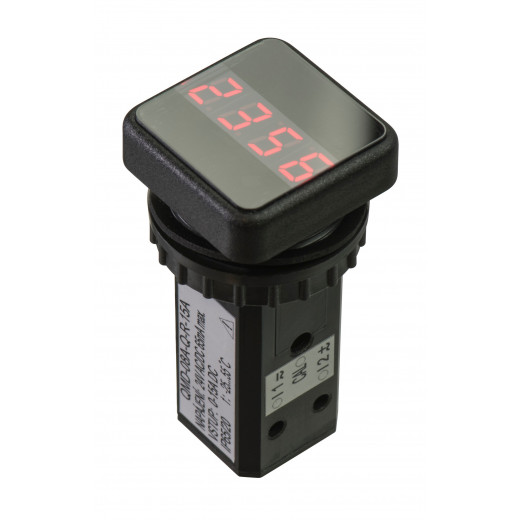

QMD-08-P Pulse counter

Product code: %% completeCode %%
Shape
Colour
Power Supply
Voltage type
We offer a custom-made configuration
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
QMD-08-P Pulse counter
Operating voltage12V - 24V AC/DC, 230V AC with external DIN rail transformer
Nominal current50mA DC max., 90mA AC max.
IP protectionIP65
Panel thicknessmax. 10 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 37 mm
LED colourR, G, B
Dimensionsø36mm square vista 34x34 mm, length 73mm; length behind the panel 60mm
Operating temperature-25.. +55°C
Mounting hole30 mm

FucnctionPanel measuring module with a four-digit, well readable LED display. Character height 10 mm. Easy installation into the panel, hole diameter 30 mm. Indicator may be ordered also in a version for direct installation to the DIN rail, (indication display ran

WarningFor detailed information please check DATA sheet in Download section.
