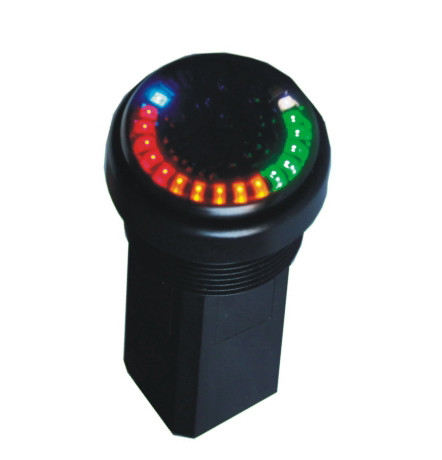

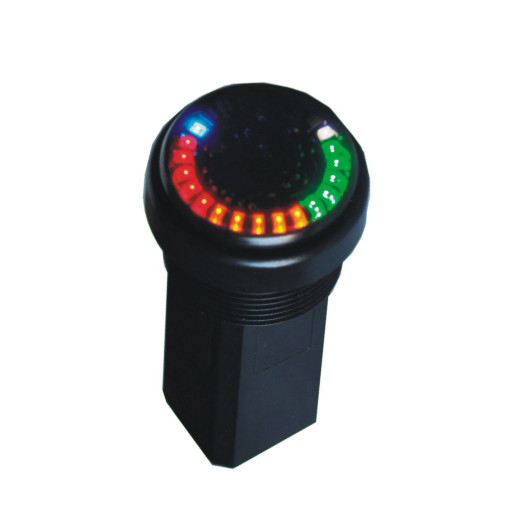

QMA-08-V Bargraph indicator

Product code: %% completeCode %%
Measurement range
Colour
Power Supply
Voltage type
We offer a custom-made configuration
Your customization
Product code:  QMA-08-V Bargraph indicator-10VDC-R-12V-AC %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
QMA-08-V Bargraph indicator
Operating voltage12V až 24V AC/DC, 230V AC s externím transformátorem
Nominal current50mA DC max., 90mA AC max.
IP protectionIP65
Panel thicknessmax. 10 mm
Connecting conductor diameter1,5 mm²
LED colourR, G, B, Y, W
Dimensionsø36mm square vista 34x34 mm, length 73mm; length behind the panel 60mm
Operating temperature-25.. +55°C
Mounting hole30 mm

FucnctionDigital measuring module with an analogue indicator of the measured value. Easy installation into the panel, hole diameter 30 mm. LED colour design based on order.

WarningFor detailed information please check DATA sheet in Download section.
