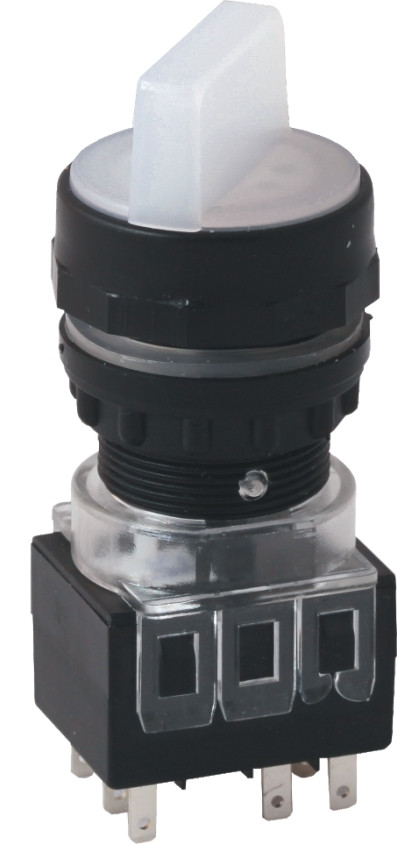

OO-03 Switch controller

Product code: %% completeCode %%
Design (button illumination)
Locking - left oriented
Locking - right oriented
Button colour
We offer a custom-made configuration
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
OO-03 Switch controller
IP protectionIP65/IP00
Panel thicknessmax. 10 mm
Holes spacingminimal 34 mm
LED colourR, G, B, Y, W, O, Bk
Dimensionsø31 mm, length 77 mm, length behind the panel 51 mm
Mounting hole22mm
Connection methodfaston 2,8 mm
Conductor power loadmax. 230V AC, DC; 10A AC, 0,2A DC max.
Operational voltage12-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP20
Connecting conductor diameter1,5 mm²
WarningFor the non-lighted button control, only the colour of the top may be selected in the order, and only K1-K4 may be used. For the lighted button control, the LED colour is to be selected acc. to the table, and maximally K1-K3 may be used. The top of the bu
