ISF-HIS-99

Product code: %% completeCode %%
Colour
Colour 2
We offer a custom-made configuration
Your customization
Product code:  ISF-HIS-99-R-R %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105

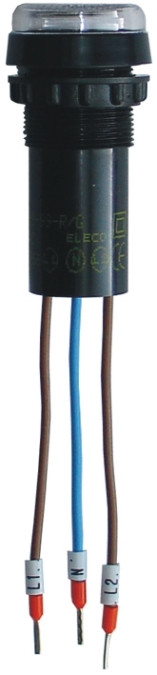

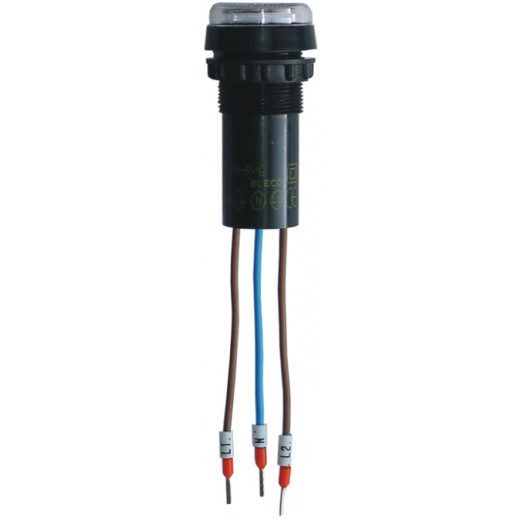

ISF-HIS-99
Operating voltage400V AC
Nominal current3mA max.
IP protectionIP65
Panel thicknessmax. 10 mm
Connecting conductor diameter1,5 mm²
Holes spacingminimal 37 mm
LED colourR, G, B, Y, W
Dimensionsø30mm, length 57mm, length behind the panel 45mm
Operating temperature-25.. +55°C
Mounting hole22 mm

FucnctionIndicator indicating the phases rotation. Leading phase is marked with e.g. R colour. Lagging phase is indicated with e.g. G.

WarningV přístroji nejsou použity prvky nadproudové ochrany. Prvky nadproudové ochrany musí být součástí zařízení jehož je přístroj součástí.
