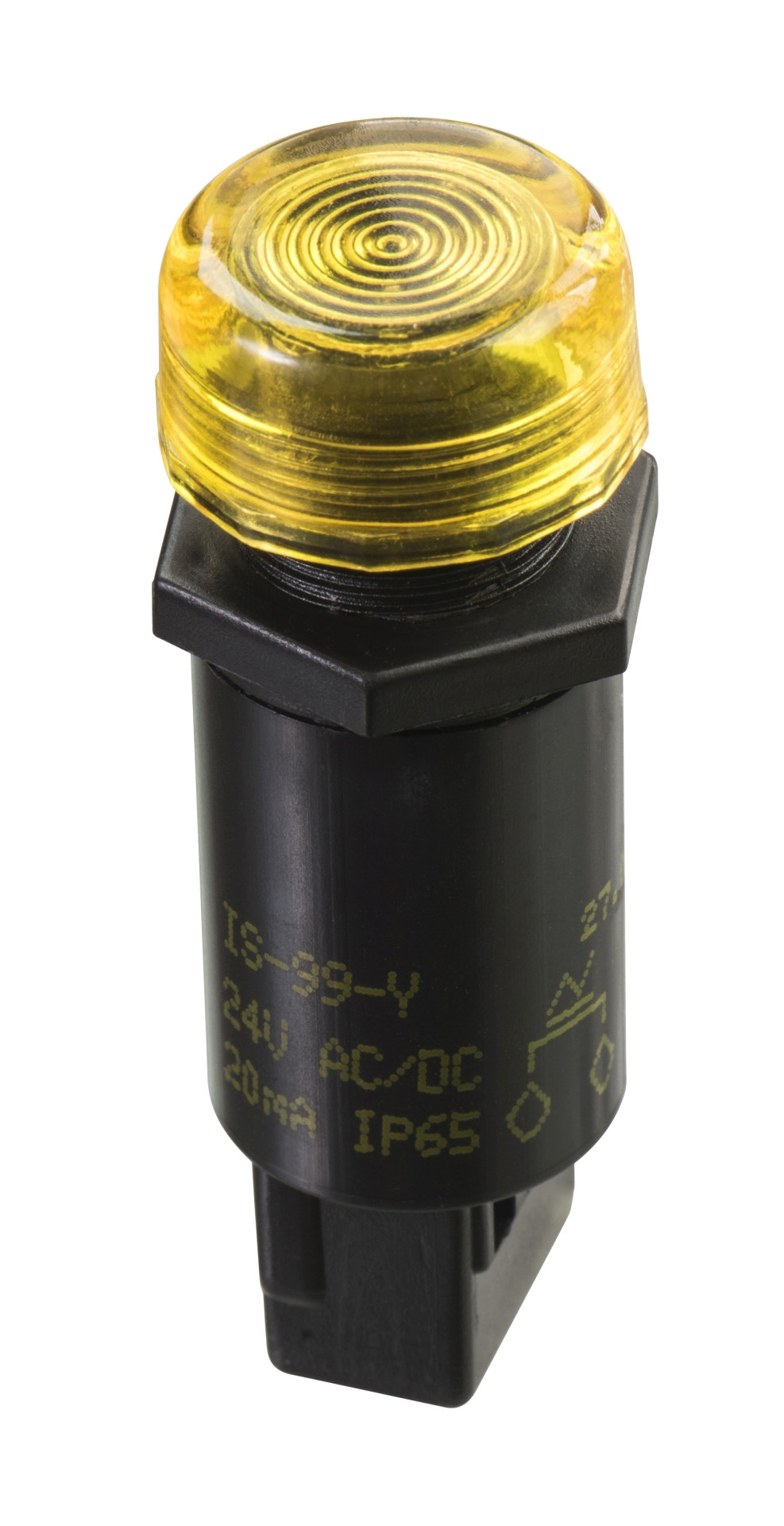

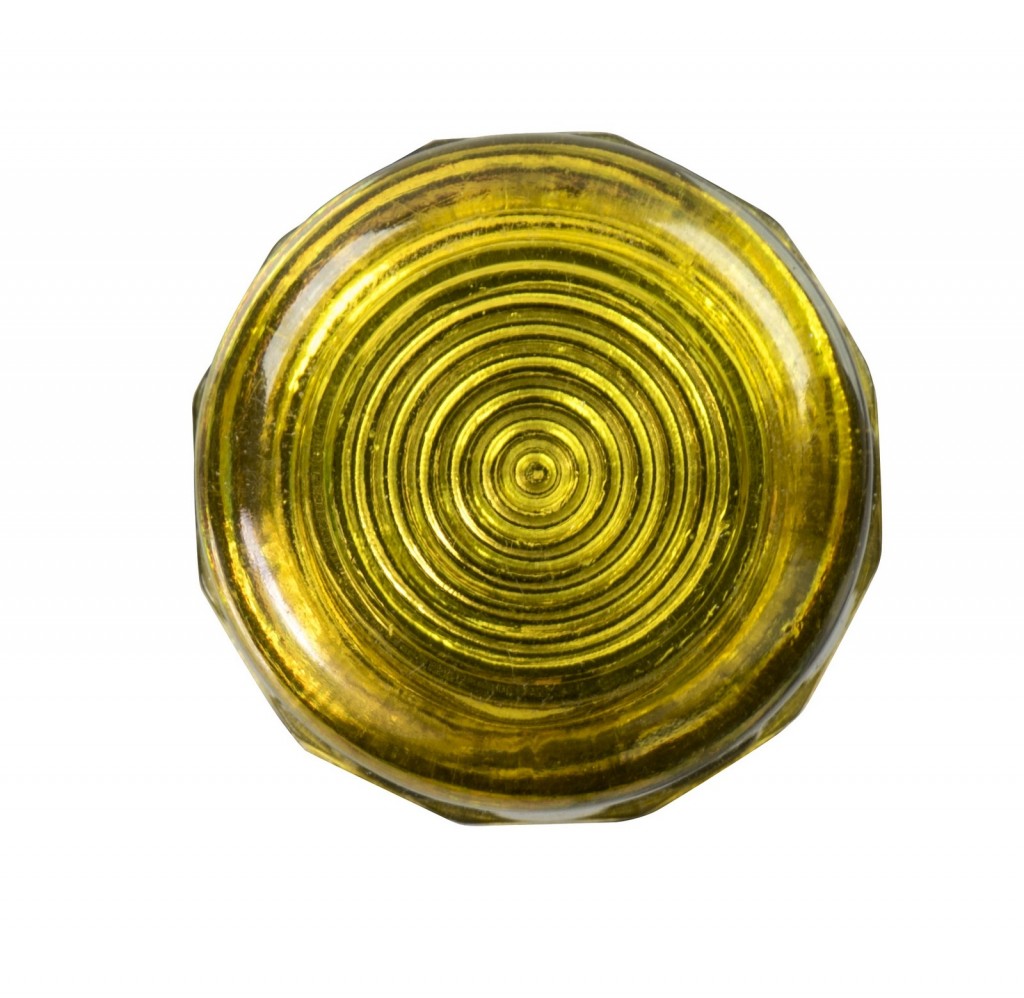

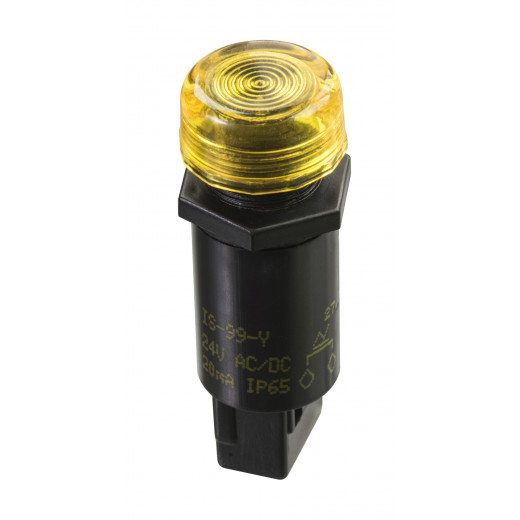

IS-99 1 pc. LED
IS-99Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Operating voltage | 12-60V AC, DC, AC/DC 110-230V AC, DC | Nominal current | max. 20mA | IP protection | IP65 | Panel thickness | max. 8 mm | Connecting conductor diameter | 2,5 mm² | Holes spacing | minimal 26 mm | LED colour | R, G, B, Y, W, O | Dimensions | ø22 mm, length 65 mm, length behind the panel 48 mm | Operating temperature | -25.. +55°C | Mounting hole | 16 mm |
Warning | The tube of two-state indicators is 3 mm longer. LED 2 cannot be combined with Test function (T) |
