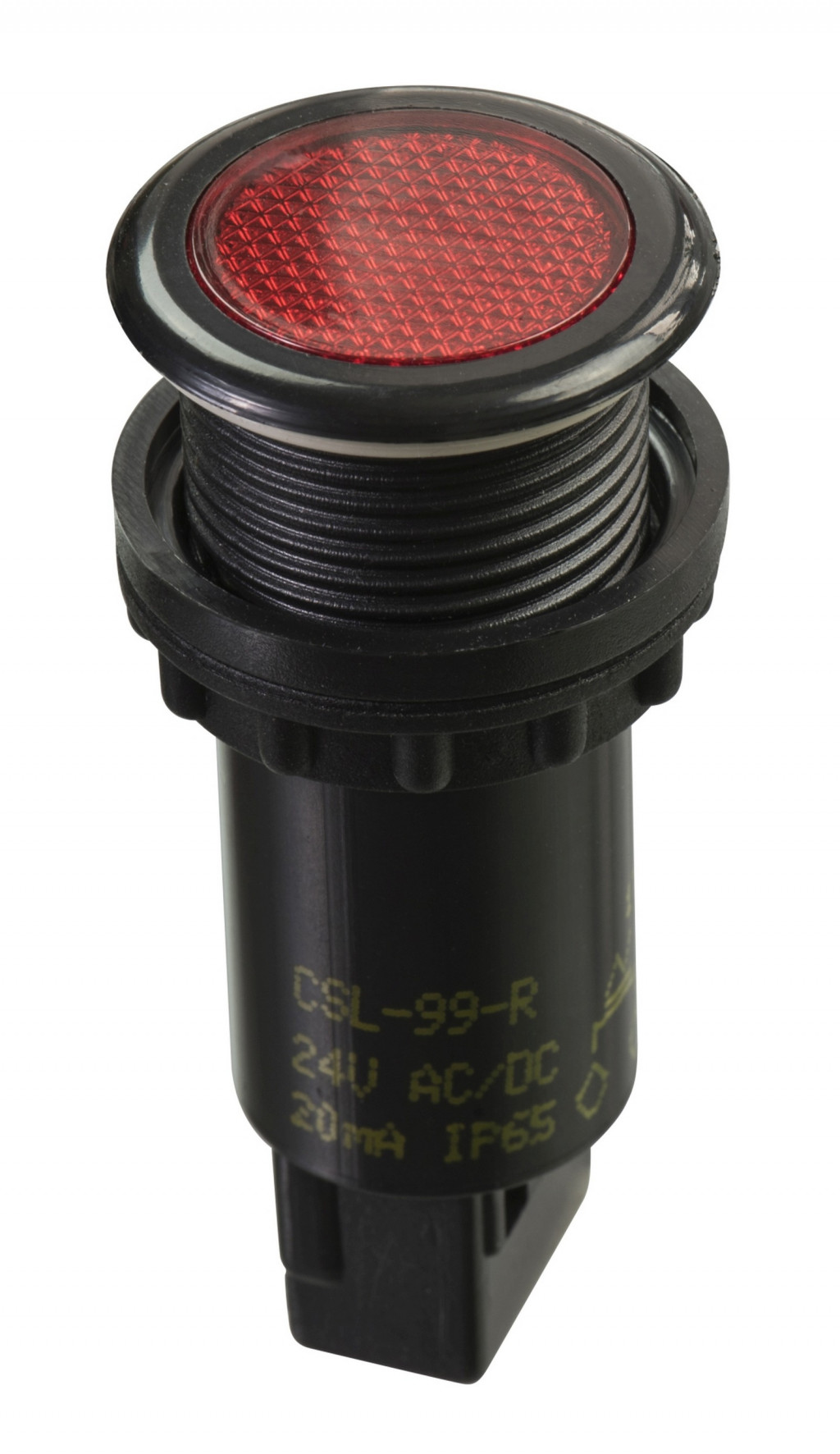

CSL-99 1 pc. LED

Product code: %% completeCode %%
Colour 2
Function 2
Power Supply
Voltage type
We offer a custom-made configuration
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
CSL-99 1 pc. LED
Operating voltage12-60V AC, DC, AC/DC 110-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 12 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 29 mm
LED colourR, G, B, Y, W, O
Dimensionsø28 mm, length 62,5 mm, length behind the panel 61 mm
Operating temperature-25.. +55°C
Mounting hole22 mm
WarningThe tube of two-state indicators is 3 mm longer. LED 2 cannot be combined with Test function (T)
